splinebox.spline_curves.HermiteSpline.

normal

HermiteSpline.normal(t, frame='bishop', initial_vector=None, shift=None)

Returns the normal vector(s) for 2D and 3D splines. For 3D splines this is equivalent to splinebox.spline_curves.Spline.moving_frame().

Parameters:

tfloat or numpy array

The parameter value(s) for which the normal vector(s) are computed.

frame“bishop” | “frenet”

The type of frame used for 3D curves.

initial_vectornumpy array

Fixes the initial orientation of the normals at position t[0].

shiftfloat or None

Not all splines are C2 or C1. If any of the t values are at non-differentiable locations, the shift will be applied to them. If shift is None an error will be raised. Usually, a very small shift is sufficient.

Returns:

normalsnumpy array

The normal vectors.

Examples

>>> import splinebox
>>> import numpy as np
>>> import matplotlib.pyplot as plt

We start by creating a spline.

>>> spline = splinebox.Spline(M=4, basis_function=splinebox.B3(), closed=False)
>>> spline.knots = np.array([[0, 0], [1, 1], [2, 0], [3, -1]])

Next, we compute one of the normals

>>> normal = spline.normal(0.5)

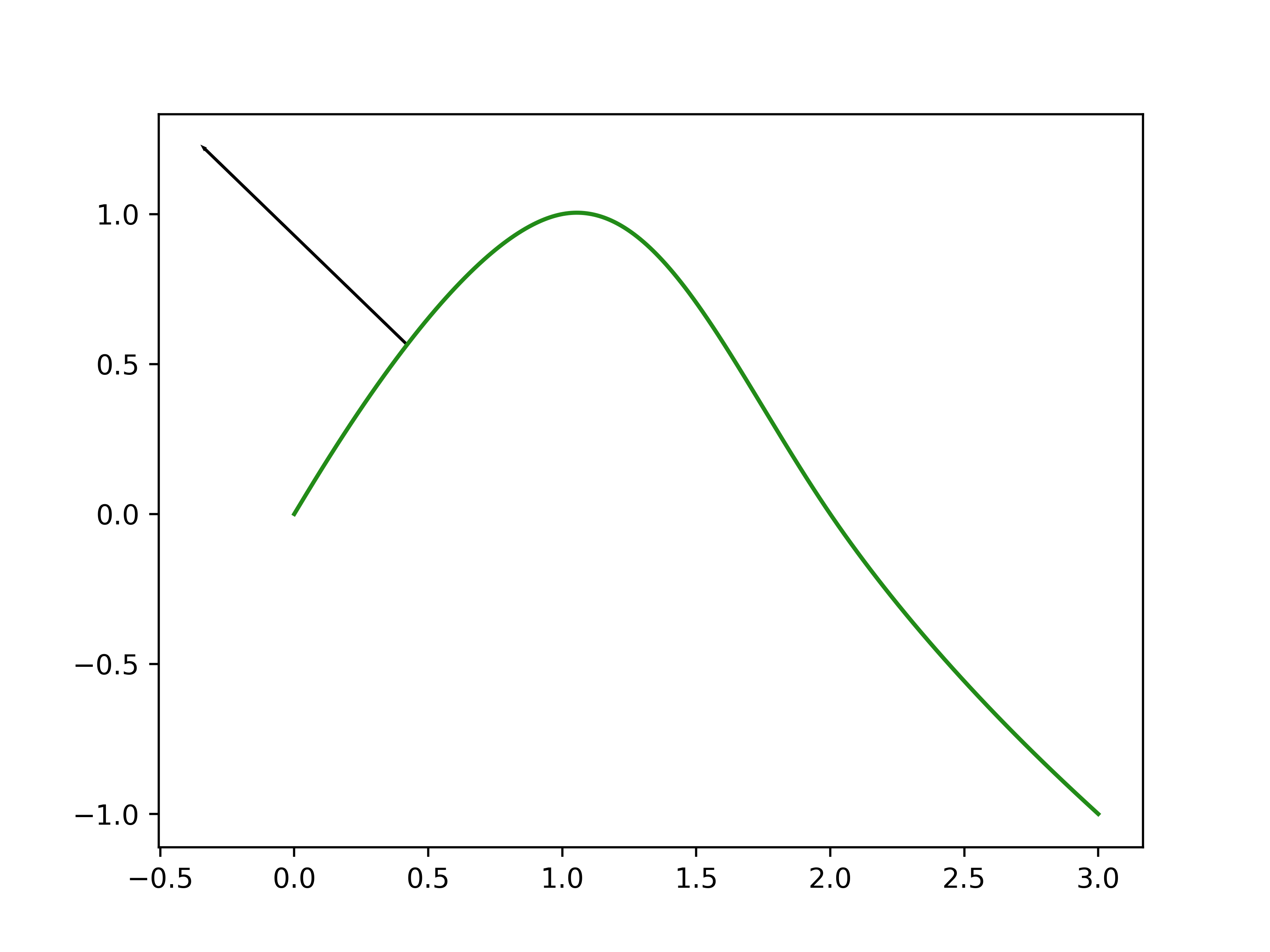

Let’s, plot the spline and our normal.

>>> t = np.linspace(0, spline.M - 1, 1000)
>>> vals = spline(t)
>>> plt.plot(vals[:, 0], vals[:, 1])
>>> point = spline(0.5)
>>> plt.arrow(point[0], point[1], normal[0], normal[1])
>>> plt.show()
